PEJ Fire Pump System Electric Centrifugal and Jockey Pump

الوصف التقني
• التصميم الأصلي من النقاء
كلا موتور مربع & جولة المحركات المتاحة
* ye3 ارتفاع كفاءة المحرك، مع توفير الحماية ip55 كلاس و
• حالة مضخة مع طلاء التآكل
· المكره في polimer تكنو
* رمح في ايسي 304 الفولاذ المقاوم للصدأ أو الحديد المجلفن
· شفط وميناء التفريغ في الحديد الزهر مجموعة العشرين الخيط
• جودة نسك مع مقاومة التآكل ختم الميكانيكية

استفسار

Product Description

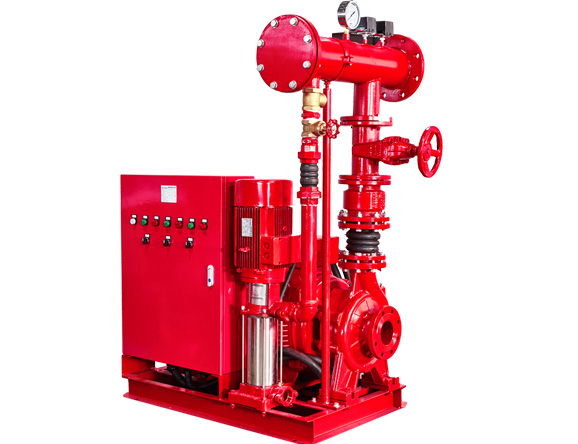

PEJ Fire Pump System

(End Suction Centrifugal Pump + Multistage Jockey Pump + Control Panel Board)




End Suction Horizontal Centrifugal Fire Pump (PST)


TECHNICAL DESCRIPTION

New EN733 standard centrifugal pump

Original design by PURITY (patented)

Both square motor & round motor available

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Galvanized counter flange with bolts, nuts and gaskets

Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The EN733 centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1


PATENTS

Registered model PST

Registered Patent Design n 201530478502.0



Vertical Multistage Jockey Fire Pump (PV)


TECHNICAL DESCRIPTION

New vertical multistage centrifugal pump

Original design by PURITY

Both square motor & round motor available

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in techno-polimer

Shaft in stainless steel AISI 304 or galvanized iron

Suction and discharge port in cast iron G20 thread

Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The high efficiency and adaptability of these pumps to even the most

unusual of applications, makes them ideal for use in the domestic,

civil and industrial sectors; in particular for the distribution of water

in combination with pressure sets and for pressure boosting.


USING LIMITS

Liquid temperature between -10℃ and +120

Ambient temperature up to +50℃

Max. working pressure 25 bar

Continuous service S1



Control Panel Board



PST

TECHICAL DATA/DATOS TECNICOS                                                        50 HZ    n=2900 1/min

MODEL/MODELO

Power/Potencia

us

gpm

Q=DELIVERY / CAUDAL

DN

0

26

40

66

79

106

119

159

185

211

238

317

370

396

476

529

608

793

925

l/min

0

100

150

250

300

400

450

600

700

800

900

1200

1400

1500

1800

2000

2300

3000

3500

kw

hp

m3/h

0

6

9

15

18

24

27

36

42

48

54

72

84

90

108

120

138

180

210

mm

32-125/07

0.75

1

Head

H(m)

17.5

16.7

15

12

9

50x32

32-125/11

1.1

1.5

22

21

19.7

16.5

14.5

9

50x32

32-160/15

1.5

2

25.4

23.7

22.5

18.5

15.8

50x32

32-160/22

2.2

3

31

29.6

28.5

24.5

22

15

50x32

32-160/30

3

4

35

34.3

34

28

25.5

19

15

50x32

32-200/30

3

4

44.2

43

39.8

35.2

32.2

24.6

19.8

50x32

32-200/40

4

5.5

54.5

52

50

45.5

41.9

35

30.3

50x32

32-250/55

5.5

7.5

60

59.5

59

55

51

34.5

50x32

32-250/75

7.5

10

69.5

69

68.5

66

63

53

50x32

32-250/110

11

15

90

89.5

89

82

79

66

50x32

32-250/55D

5.5

7.5

79.5

74.7

71.8

63

56

37.5

50x32

32-250/75D

7.5

10

95

93

91

83

76

57.8

50x32

40-125/11

1.1

1.5

14.7

13.5

11.5

10.1

5.8

65x40

40-125/15

1.5

2

18.1

17

15

13.9

9.6

6

65x40

40-125/22

2.2

3

24.5

23.2

21.5

20.2

16

13

8.3

65x40

40-160/30

3

4

31.8

29.5

27.5

26.3

21.5

17.5

65x40

40-160/40

4

5.5

38

36

34

33

28.5

25

20.1

65x40

40-200/55

5.5

7.5

46

43.8

41.3

40.1

35

30

65x40

40-200/75

7.5

10

57

53.6

51.5

50

45

41

36.5

65x40

40-250/92

9.2

12.5

64

59

56.5

55

49.5

45

39.8

65x40

40-250/110

11

15

72

67.5

66

63.5

57.5

52.2

47

65x40

40-250/150

15

20

84.5

80

77.3

75.2

71

65

61

65x40

50-125/22

2.2

3

17

15.4

14

12.8

11.5

6.5

65x50

50-125/30

3

4

20

18.8

18

17

15.6

11

65x50

50-125/40

4

5.5

24

23.1

23

21.5

20.3

15.8

11.8

65x50

50-160/55

5.5

7.5

32

30.6

30

28

26.6

20.5

14.8

65x50

50-160/75

7.5

10

40

38

37

36

34.4

29

24

21

65x50

50-200/92

9.2

12.5

50.5

46.8

45

43

40.9

32.5

26.7

65x50

50-200/110

11

15

57.5

53.5

52

50

47.5

40

34

29

65x50

50-200/150

15

20

62

58

56.5

54.5

52

44.5

39

35.5

65x50

50-250/150

15

20

68.5

64

63

61.5

59

50

41

65x50

50-250/185

18.5

25

79

75.8

74.8

74

71.5

63.5

55.5

47

65x50

50-250/220

22

30

89.5

86

85.3

84

81.5

73.5

65.5

57

65x50

65-125/40

4

5.5

19

17.3

16.8

14.5

13

11.8

80x65

65-125/55

5.5

7.5

23

21.3

20.9

19

17.5

16.7

13.7

80x65

65-125/75

7.5

10

27

26

25.6

24.5

23

22.5

20

18

80x65

65-160/92

9.2

12.5

33

31.5

30

28

27.1

24

21.5

80x65

65-160/110

11

15

36

34.5

33

31.5

30.8

28

25.5

80x65

65-160/150

15

20

42

41

40

38.5

37.8

35

33

29.5

80x65

65-200/150

15

20

45

45.5

43

41

40.2

36.5

34

80x65

65-200/185

18.5

25

52

52.3

51

49

48.2

44.5

42

80x65

65-200/220

22

30

59

59.5

58

56

55

52

49.5

44.5

80x65

65-250/220

22

30

64.8

64.7

62

60

58.5

53

50

80x65

65-250/300

30

40

80

79.8

77.5

75.5

74.5

70

66

58

80x65

65-250/370

37

50

92

90.5

88.5

87

85

80.5

78

68

80x65

80-125/40

4

5.5

17

16.5

15.9

14.3

13.5

11.6

10

7.5

100x80

80-125/55

5.5

7.5

21

20.5

20

19

18

16.5

15

12.5

9.5

100x80

80-125/75

7.5

10

26

25

25

24.5

23.8

22.5

21.5

19.5

16.5

100x80


TECHICAL DATA/DATOS TECNICOS                                                        50 HZ    n=2900 1/min

MODEL/MODELO

Power/Potencia

us

gpm

Q=DELIVERY / CAUDAL

DN

0

264

396

529

634

793

881

925

969

1057

1233

1322

1586

1762

2203

2643

3524

4405

l/min

0

1000

1500

2000

2400

3000

3333

3500

3666

4000

4666

5000

6000

6666

8333

10000

13333

16666

kw

hp

m3/h

0

60

90

120

144

180

200

210

220

240

280

300

360

400

500

600

800

1000

mm

80-160/110

11

15

Head

H(m)

27

27

27.3

24.5

21.1

16

100x80

80-160/150

15

20

32.8

32.6

32.5

30.2

27

22.1

18.5

16.7

100x80

80-160/185

18.5

25

39

38.5

38

36.7

33.6

28.8

25.3

23.5

100x80

80-160/220

22

30

44

43.5

43

41.7

38.6

33.8

30.3

28.5

100x80

80-200/220

22

30

48

47.7

47.5

43.5

39.2

32.5

27.2

24.5

100x80

80-200/300

30

40

60

59.7

59.5

57

53.1

47

42.7

40.5

100x80

80-250/370

37

50

71.5

70.9

70.5

65.5

59.3

51

43.2

38.5

100x80

80-250/450

45

60

88

86.7

86

83.6

78.5

70.5

60

51

100x80

80-250/550

55

75

94.5

94.5

94.5

91.8

87

79.5

72.1

68.3

100x80

100-160/150

15

20

35

33.5

32.5

30

27.8

24.5

21.5

20

18.3

15

125x100

100-160/185

18.5

25

38.5

37.5

36.5

34.3

32.2

29

25.7

24

22

18

125x100

100-160/220

22

30

43

41

40

37.6

35.2

31.5

28.5

27

25.3

22

125x100

100-200/220

22

30

38.5

36.7

35.7

33.8

31.7

28.5

26.8

26

25

22.9

16.3

13

125x100

100-200/300

30

40

44.5

42.5

42

40.2

38.8

36.7

34.2

33

31.7

29

21.7

18

125x100

100-200/370

37

50

55

53

51

50.6

49.2

47

45

44

42.8

40.5

32.8

29

125x100

100-250/450

45

60

65

65

64

63

61

58

56

55

53.3

50

39

33.5

125x100

100-250/550

55

75

77

76

75.5

75

73.8

72

71.7

71.5

70.7

69

62.3

59

125x100

100-250/750

75

100

91

91

90.5

89.7

88

85.5

84

83.3

81.5

78

71.7

68.5

48

125x100




PV

TECHNICAL DATA

MODEL

Power

us

gpm

Q=DELIVERY

DN

0

5

11

13

16

19

21

24

26

29

32

37

42

48

53

58

63

69

74

79

l/min

0

20

40

50

60

70

80

90

100

110

120

140

160

180

200

220

240

260

280

300

kw

hp

m³/h

0

1.2

2.4

3

3.6

4.2

4.8

5.4

6

6.6

7.2

8.4

9.6

10.8

12

13.2

14.4

15.6

16.8

18

mm

PV4x7/1.5

1.1

1.5

Head

H(m)

60.7

56.8

52.1

49

45.9

42.8

38.9

35

30.3

25.7

20.2

25x25

PV4x9/2

1.5

2

78

73

67

63

59

55

50

45

39

33

26

25x25

PV4x13/3

2.2

3

113

105

96.8

91

85.2

79.4

72.2

65

56.3

47.7

37.5

25x25

PV4x16/4

3

4

139

130

119

112

105

97.8

88.9

80

69.3

58.7

46.2

25x25

PV6x5/1.5

1.1

1.5

44.4

135.5

33.3

30.9

28.4

26.1

23.4

20.2

14.3

6.8

32x32

PV6x8/2

1.5

2

71.1

56.7

53.2

49.5

45.5

41.8

37.5

32.4

22.9

10.9

32x32

PV6x11/3

2.2

3

97.7

78

73.2

68

62.5

57.5

51.5

44.5

31.5

15

32x32

PV6x15/4

3

4

133

106

99.8

92.7

85.2

78.4

70.2

60.7

43

20.5

32x32

PV8x4/1.5

1.1

1.5

36.8

30

28.4

27.2

26

24.4

21.2

17.6

13.2

9.2

4.8

40x40

PV8x7/2

1.5

2

64.4

52.5

49.7

47.6

45.5

42.7

37.1

30.8

23.1

16.1

8.4

40x40

PV8x9/3

2.2

3

82.8

67.5

63.9

61.2

58.5

54.9

47.7

39.6

29.7

20.7

10.8

40x40

PV8x12/4

3

4

110

90

85.2

81.6

78

73.2

63.6

52.8

39.6

27.6

14.4

40x40

PV8x16/5.5

4

5.5

147

120

114

109

104

97.6

84.8

70.4

52.8

36.8

19.2

40x40

PV12x3/1.5

1.1

1.5

31

25.4

24.7

24

22.4

20.6

18.4

16.2

13.3

10.9

8.3

5.1

2

50x50

PV12x5/2

1.5

2

51.7

42.4

41.2

40

37.3

34.3

30.7

27

22.2

18.2

13.8

8.5

3.3

50x50

PV12x7/3

2.2

3

72.3

59.3

57.6

56

52.3

48.1

43

37.8

31

25.5

19.4

11.9

4.7

50x50

PV12x9/4

3

4

93

76.2

74.1

72

67.2

61.8

55.2

48.6

39.9

32.8

24.9

15.4

6

50x50

PV12x12/5.5

4

5.5

122

102

98.8

96

89.6

82.4

73.6

64.8

53.2

43.8

33.2

20.5

8

50x50

PV12x17/7.5

5.5

7.5

176

144

140

136

127

117

104

91.8

75.4

62

47

29

11.3

50x50



MODEL

Power

us

gpm

Q=DELIVERY

DN

0

26

53

79

106

132

159

185

211

l/min

0

100

200

300

400

500

600

700

800

kw

hp

m³/h

0

6

12

18

24

30

36

42

48

mm

PV30x7/10

7.5

10

Head

H(m)

104

100

93

83

74

64

49

31

4

50x50

65x65

PV30x9/12

9.2

12.5

133

128

119

108

96

82

63

40

5

PV30x11/15

11

15

163

156

145

132

116

99

77

48

6









PST


No.

Description

Material

No.

Description

Material

No.

Description

Material

1

Pump Case

Cast iron

10

Motor Case

Aluminum

19

Impeller Key

Iron

2

Impeller

SS304/Cast iron

11

Support Foot

Plastic

20

Water Deflector

Rubber

3

Mechanical Seal

SiC/Carbon/SS304

12

Back Cover

Cast iron

21

Connection Bolt

Steel

4

O-ring

Rubber

13

Reinforced Seal

Rubber

22

Impeller Nut

Galvanizated Steel

5

Connection

Cast iron

14

Fan Cover

Aluminum

23

Release Valve

Brass

6

Reinforced Seal

Rubber

15

Fan

Plastic

24

Gasket

Rubber

7

Shaft

SS304/45# Steel

16

Through Bolt

Steel

25

Counter Flange

Galvanizated Cast iron

8

Bearing

Ball Bearing

17

Terminal Box

Aluminum

26

Flange Bolt

Steel

9

Wound Stator/Rotor

Silicon Steel/Copper

18

Terminal Board

Plastic






Spare Parts




Packaging & Shipping





Our Exhibition





Certifications




Product Description







PEJ Fire Pump System

(End Suction Centrifugal Pump + Multistage Jockey Pump + Control Panel Board)




End Suction Horizontal Centrifugal Fire Pump (PST)

TECHNICAL DESCRIPTION

New EN733 standard centrifugal pump

Original design by PURITY (patented)

Both square motor & round motor available

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Galvanized counter flange with bolts, nuts and gaskets

Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The EN733 centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1


PATENTS

Registered model PST

Registered Patent Design n 201530478502.0



Vertical Multistage Jockey Fire Pump (PV)

TECHNICAL DESCRIPTION

New vertical multistage centrifugal pump

Original design by PURITY

Both square motor & round motor available

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in techno-polimer

Shaft in stainless steel AISI 304 or galvanized iron

Suction and discharge port in cast iron G20 thread

Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The high efficiency and adaptability of these pumps to even the most

unusual of applications, makes them ideal for use in the domestic,

civil and industrial sectors; in particular for the distribution of water

in combination with pressure sets and for pressure boosting.


USING LIMITS

Liquid temperature between -10℃ and +120

Ambient temperature up to +50℃

Max. working pressure 25 bar

Continuous service S1



Control Panel Board



PST


TECHNICAL DATA / DATOS TÉCNICOS                                                         60Hz   n=3500  1/min


MODEL/MODELO

Power/Potencia

us

gpm

Q=DELIVERY / CAUDAL

DN

0

26

40

66

79

106

119

159

185

211

238

317

370

396

476

529

608

793

925

l/min

0

100

150

250

300

400

450

600

700

800

900

1200

1400

1500

1800

2000

2300

3000

3500

kw

hp

m³/h

0

6

9

15

18

24

27

36

42

48

54

72

84

90

108

120

138

180

210

mm

32-125/07

0.75

1

Head

H(m)

17.5

16.7

15

12

9

50x32

32-125/11

1.1

1.5

22

21

19.7

16.5

14.5

9

50x32

32-160/15

1.5

2

25.4

23.7

22.5

18.5

15.8

50x32

32-160/22

2.2

3

31

29.6

28.5

24.5

22

15

50x32

32-160/30

3

4

35

34.3

34

28

25.5

19

15

50x32

32-200/30

3

4

44.2

43

39.8

35.2

32.2

24.6

19.8

50x32

32-200/40

4

5.5

54.5

52

50

45.5

41.9

35

30.3

50x32

32-250/55

5.5

7.5

60

59.5

59

55

53

49

46

50x32

32-250/75

7.5

10

75

74.5

74.3

73.5

72.5

68.5

67.3

60

50x32

32-250/110

11

15

90

87.5

85.8

82

79

75

72

65

50x32

32-250/55D

5.5

7.5

79.5

77

74

70

66

54

42

50x32

32-250/75D

7.5

10

95

93

91

87

83

75

70

32

50x32

40-125/11

1.1

1.5

14.7

13.5

11.5

10.1

5.8

65x40

40-125/15

1.5

2

18.1

17

15

13.9

9.6

6

65x40

40-125/22

2.2

3

24.5

23.2

21.5

20.2

16

13

8.3

65x40

40-160/30

3

4

31.8

29.5

27.5

26.3

21.5

17.5

65x40

40-160/40

4

5.5

38

36

34

33

28.5

25

20.1

65x40

40-200/55

5.5

7.5

46

43.8

41.3

40.1

35

30

65x40

40-200/75

7.5

10

57

53.6

51.5

50

45

41

36.5

65x40

40-250/92

9.2

12.5

64

59

56.5

55

49.5

45

39.8

65x40

40-250/110

11

15

78

75

73

72

67

63

56

43

65x40

40-250/150

15

20

88.5

83.5

80.5

79

74

70.5

65

52

65x40

50-125/22

2.2

3

17

15.4

14

12.8

11.5

6.5

65x50

50-125/30

3

4

20

18.8

18

17

15.6

11

65x50

50-125/40

4

5.5

24

23.1

23

21.5

20.3

15.8

11.8

65x50

50-160/55

5.5

7.5

32

30.6

30

28

26.6

20.5

14.8

65x50

50-160/75

7.5

10

40

38

37

36

34.4

29

24

21

65x50

50-200/92

9.2

12.5

50.5

46.8

45

43

40.9

32.5

26.7

65x50

50-200/110

11

15

57.5

53.5

52

50

47.5

40

34

29

65x50

50-200/150

15

20

62

58

56.5

54.5

52

44.5

39

35.5

65x50

50-250/150

15

20

68.5

64

63

61.5

59

50

41

65x50

50-250/185

18.5

25

79

75.8

74.8

74

71.5

63.5

55.5

47

65x50

50-250/220

22

30

89.5

86

85.3

84

81.5

73.5

65.5

57

65x50

65-125/40

4

5.5

19

17.3

16.8

14.5

13

11.8

80x65

65-125/55

5.5

7.5

23

21.3

20.9

19

17.5

16.7

13.7

80x65

65-125/75

7.5

10

27

26

25.6

24.5

23

22.5

20

18

80x65

65-160/92

9.2

12.5

33

31.5

30

28

27.1

24

21.5

80x65

65-160/110

11

15

36

34.5

33

31.5

30.8

28

25.5

80x65

65-160/150

15

20

42

41

40

38.5

37.8

35

33

29.5

80x65

65-200/150

15

20

45

45.5

43

41

40.2

36.5

34

80x65

65-200/185

18.5

25

52

52.3

51

49

48.2

44.5

42

80x65

65-200/220

22

30

59

59.5

58

56

55

52

49.5

44.5

80x65

65-250/220

22

30

64.8

64.7

62

60

58.5

53

50

80x65

65-250/300

30

40

80

79.8

77.5

75.5

74.5

70

66

58

80x65

65-250/370

37

50

92

90.5

88.5

87

85

80.5

78

68

80x65

80-125/40

4

5.5

17

16.5

15.9

14.3

13.5

11.6

10

7.5

100x80

80-125/55

5.5

7.5

21

20.5

20

19

18

16.5

15

12.5

9.5

100x80

80-125/75

7.5

10

26

25

25

24.5

23.8

22.5

21.5

19.5

16.5

100x80



TECHNICAL DATA / DATOS TÉCNICOS                                                         60Hz   n=3500  1/min

MODEL/MODELO

Power/Potencia

us

gpm

Q=DELIVERY / CAUDAL

DN

0

264

396

529

634

793

881

925

969

1057

1233

1322

1586

1762

2203

2643

3524

4405

l/min

0

1000

1500

2000

2400

3000

3333

3500

3666

4000

4666

5000

6000

6666

8333

10000

13333

16666

kw

hp

m³/h

0

60

90

120

144

180

200

210

220

240

280

300

360

400

500

600

800

1000

mm

80-160/110

11

15

Head

H(m)

27

27

27.3

24.5

21.1

16

100x80

80-160/150

15

20

32.8

32.6

32.5

30.2

27

22.1

18.5

16.7

100x80

80-160/185

18.5

25

39

38.5

38

36.7

33.6

28.8

25.3

23.5

100x80

80-160/220

22

30

44

43.5

43

41.7

38.6

33.8

30.3

28.5

100x80

80-200/220

22

30

48

47.7

47.5

43.5

39.2

32.5

27.2

24.5

100x80

80-200/300

30

40

60

59.7

59.5

57

53.1

47

42.7

40.5

100x80

80-250/370

37

50

71.5

70.9

70.5

65.5

59.3

51

43.2

38.5

100x80

80-250/450

45

60

88

86.7

86

83.6

78.5

70.5

60

51

100x80

80-250/550

55

75

94.5

94.5

94.5

91.8

87

79.5

72.1

68.3

100x80

100-160/150

15

20

35

33.5

32.5

30

27.8

24.5

21.5

20

18.3

15

125x100

100-160/185

18.5

25

38.5

37.5

36.5

34.3

32.2

29

25.7

24

22

18

125x100

100-160/220

22

30

43

41

40

37.6

35.2

31.5

28.5

27

25.3

22

125x100

100-200/220

22

30

38.5

36.7

35.7

33.8

31.7

28.5

26.8

26

25

22.9

16.3

13

125x100

100-200/300

30

40

44.5

42.5

42

40.2

38.8

36.7

34.2

33

31.7

29

21.7

18

125x100

100-200/370

37

50

55

53

51

50.6

49.2

47

45

44

42.8

40.5

32.8

29

125x100

100-250/450

45

60

65

65

64

63

61

58

56

55

53.3

50

39

33.5

125x100

100-250/550

55

75

77

76

75.5

75

73.8

72

71.7

71.5

70.7

69

62.3

59

125x100

100-250/750

75

100

91

91

90.5

89.7

88

85.5

84

83.3

81.5

78

71.7

68.5

48

125x100



PV

TECHNICAL DATA / DATOS TÉCNICOS                                                         60Hz   n=3450  1/min


MODEL

Power

us

gpm

Q=DELIVERY

DN

0

5

11

13

16

19

21

24

26

29

32

37

42

48

53

58

63

69

74

79

l/min

0

20

40

50

60

70

80

90

100

110

120

140

160

180

200

220

240

260

280

300

kw

hp

m³/h

0

1.2

2.4

3

3.6

4.2

4.8

5.4

6

6.6

7.2

8.4

9.6

10.8

12

13.2

14.4

15.6

16.8

18

mm

PV4x4/1.5

1.1

1.5

Head

H(m)

52

49

46

44

41

39

37

33

30

27

23

25x25

32x32

PV4x6/2

1.5

2

77

74

69

66

63

58

55

50

45

40

34

PV4x8/3

2.2

3

104

99

92

88

84

78

73

66

60

53

45

PV4x10/4

3

4

129

124

116

110

104

97

91

83

75

66

57

PV4x5/1.5

4

5.5

168

161

150

143

136

126

119

108

97

86

74

PV4x8/2

5.5

7.5

206

198

185

177

167

156

146

133

119

106

91

PV6x3/1.5

1.1

1.5

40

36

35

33

31

30

28

26

22
