XBD2578

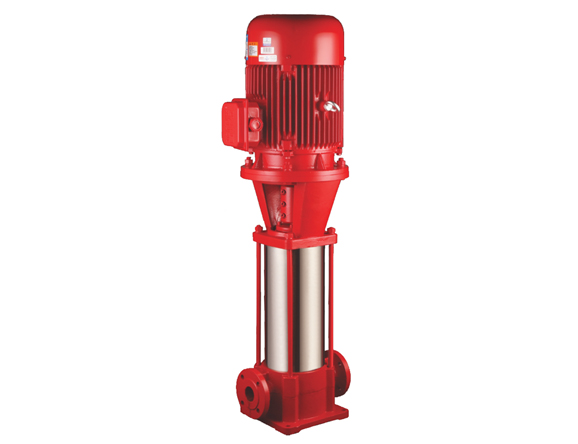

XBD Multistage High Pressure Vertical Centrifugal Fire Fighting Pump

الوصف التقني
* الجديدة العمودية متعددة المراحل مضخة طرد مركزي
• التصميم الأصلي من النقاء
كلا موتور مربع & جولة المحركات المتاحة
* ye3 ارتفاع كفاءة المحرك، مع توفير الحماية ip55 كلاس و
• حالة مضخة مع طلاء التآكل
* رمح في ايسي 304 الفولاذ المقاوم للصدأ أو الحديد المجلفن
· شفط وميناء التفريغ في الحديد الزهر مجموعة العشرين الخيط
• جودة نسك مع مقاومة التآكل ختم الميكانيكية

استفسار

Product Description






TECHNICAL DESCRIPTION
New vertical multistage centrifugal pump
Original design by PURITY
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Shaft in stainless steel AISI 304 or galvanized iron
Suction and discharge port in cast iron G20 thread
Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The high efficiency and adaptability of these pumps to even the most
unusual of applications, makes them ideal for use in the domestic,
civil and industrial sectors; in particular for the distribution of water
in combination with pressure sets and for pressure boosting.

USING LIMITS
Flow range: 5~200L/S
Pressure range: 0.2~1.35MPa
Speed: 2950r/min、1480r/min
Maximum working pressure: 2.5MPa
Medium temperature: ≤+80℃
Ambient temperature: ≤+40℃
Motor insulation: B、F





Spare Parts





Packaging & Shipping





Our Exhibition





Certifications




Product Description






TECHNICAL DESCRIPTION
New vertical multistage centrifugal pump
Original design by PURITY
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Shaft in stainless steel AISI 304 or galvanized iron
Suction and discharge port in cast iron G20 thread
Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The high efficiency and adaptability of these pumps to even the most
unusual of applications, makes them ideal for use in the domestic,
civil and industrial sectors; in particular for the distribution of water
in combination with pressure sets and for pressure boosting.

USING LIMITS
Flow range: 5~200L/S
Pressure range: 0.2~1.35MPa
Speed: 2950r/min、1480r/min
Maximum working pressure: 2.5MPa
Medium temperature: ≤+80℃
Ambient temperature: ≤+40℃
Motor insulation: B、F





Spare Parts





Packaging & Shipping





Our Exhibition





Certifications
