Product Introduction
Purity PSCM double suction centrifugal pump axially split volute casing allows for easy inspection and maintenance without disturbing the motor or piping. Single stage double suction centrifugal pump features a double-suction radial impeller that delivers balanced axial forces, stable operation, and excellent hydraulic efficiency. Customers can choose between AISI 304 stainless steel or HT250 cast iron for the impeller material, depending on the operating conditions and fluid properties.
Purity PSCM horizontal split case double suction centrifugal pump casing is made of HT250 cast iron and coated with an anti-corrosion layer, ensuring long-lasting durability even in harsh environments. This protective coating enhances the double suction split case centrifugal pump's resistance to corrosion, extending its service life and reducing long-term maintenance needs.
To protect key rotating components,double suction centrifugal pump sealing area is equipped with a shaft sleeve, effectively reducing wear and extending the life of the shaft. Purity PSCM double suction split case centrifugal pump also offers flexible sealing options, including mechanical seals for high-performance sealing and packing seals for easier maintenance access.
Grease-packed rolling bearings provide long-lasting performance and effective sealing, preventing fluid ingress into the bearing chamber. This design reduces the risk of component damage, lowers maintenance frequency, and simplifies pump servicing.
Purity as one of double suction centrifugal pump factories in China,with more than 15 years of manufacturing water pumps.Welcome to inquiry!

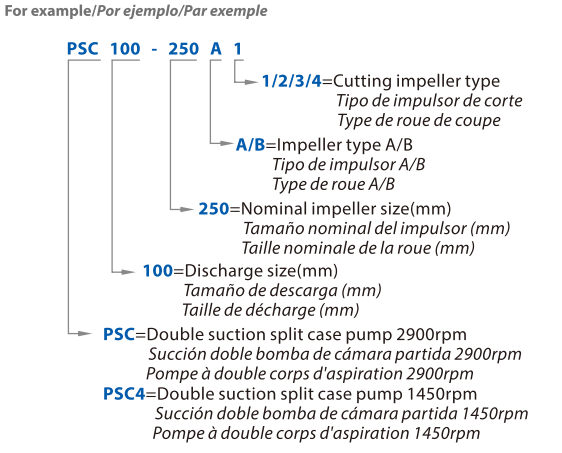

Model Description

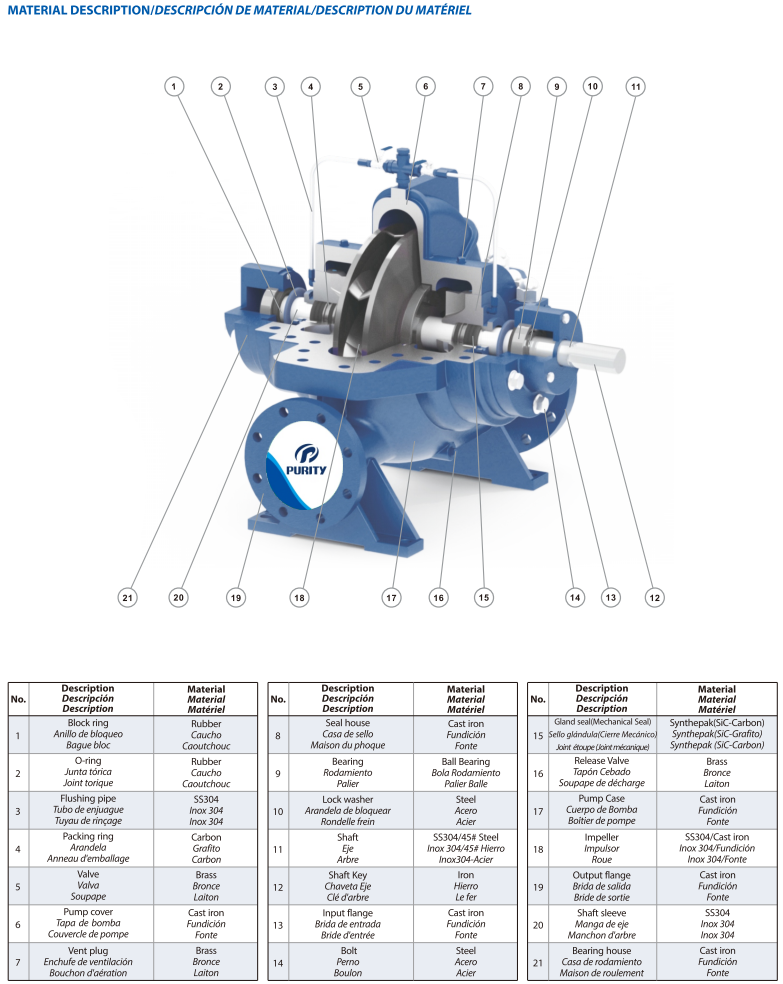

Product Components

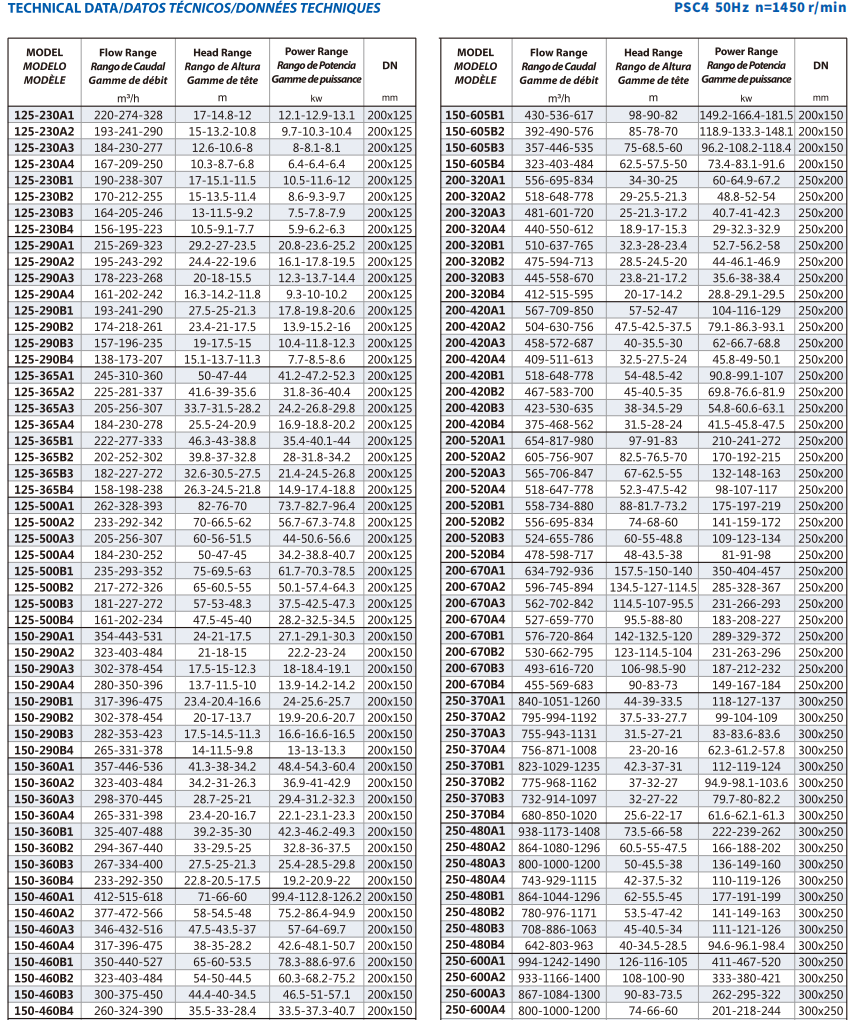

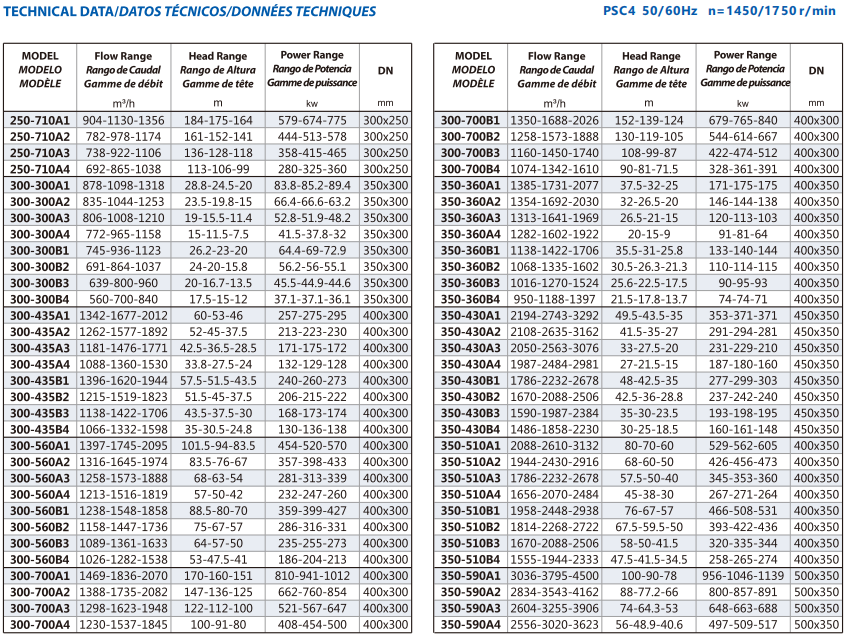

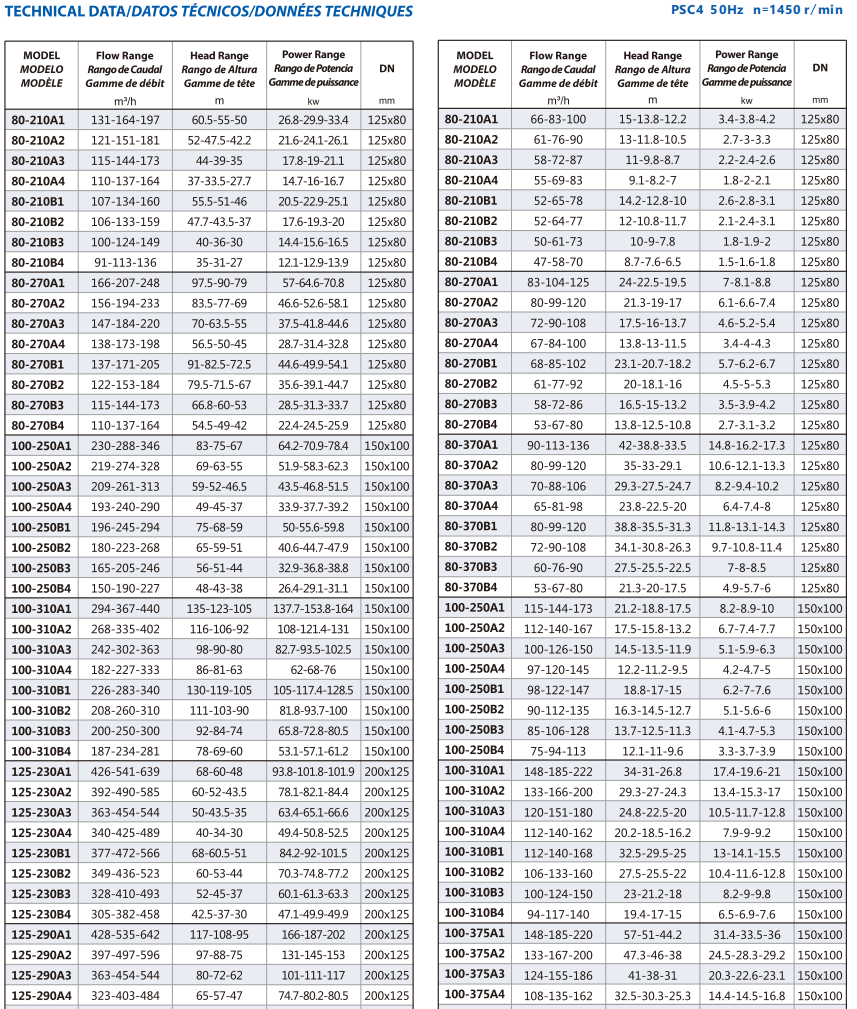

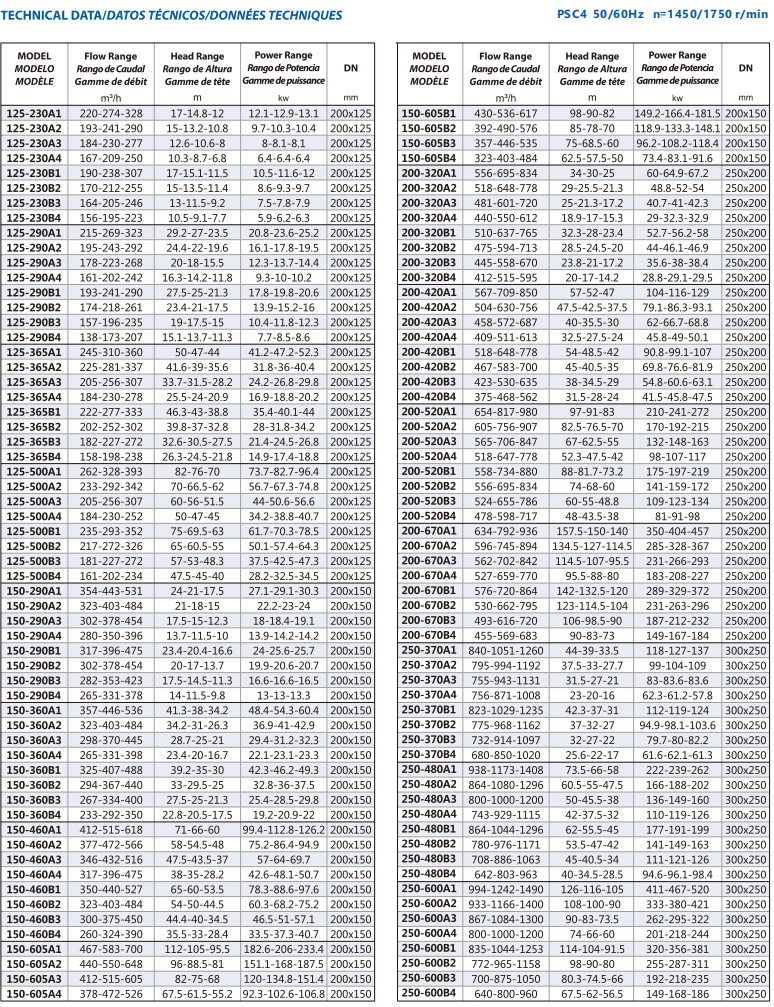

Product Parameters
