Product Description

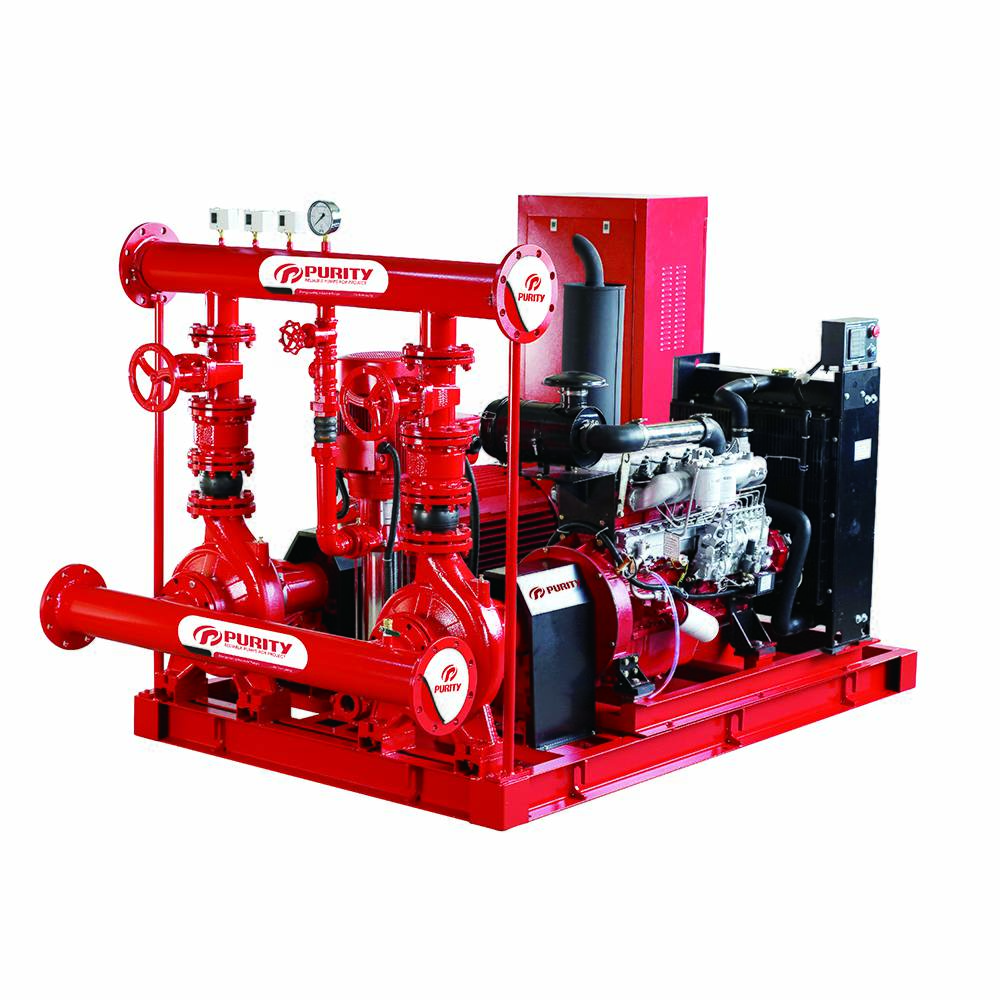

The fire fighting system consists of electric pump, diesel pump,
jockey pump and control panel.
Electric Pump(PST or PSM)
Usable Pump-- Single stage pump, end suction pump, horizontal open pump, multistage pump,
Pump case can made of cast iron or stainless steel.
Impeller can adopt copper impeller
Flow head and pressure or other parameters are the same as the electric pump,
The diesel engine is connected to the pump head through the coupling.
The diesel pump includes Radiator, base frame, PTO shaft, stop solenoid(WOODWARD),
vibration absorb, air filter, controller, muffler, tool box, plywood case
Jockey Pump (PV)
Vertical pump type.
The technical parameters is different from the electric or diesel pump, can also be customized.
Fire Pump Control Panel
Fire Pump Control Panel is the Pump System brain that designed to Control & Monitor the
operation of the Electric, Diesel, and Jockey Pumps Drivers, and makes up pumps for both
Manual & Automatic models, as well as turns pumps drivers ON/OFF under specific conditions.
Spare Parts
Accessories include Suction pipe, Discharge pipe with Flanges, Battery, Gate Valves,
Check Valves,Flexible Expansion Joints,Pressure Switches, Pessure Gauge, Base Frame,etc
Hot Sale Types
| GPM | Bar | REGULAR MODEL | ElECTRIC PUMP | DIESEL PUMP | JOCKEY PUMP | MOTOR |
| 200 | 7 | PEDJ200/7-20-27-3 |
PST 50-250/158 |
PSD 40-250-150 | PV 6X11-3HP | 15KW |
| 250 | 7 | PEDJ250/7-25-27-4 | PST 50-250/185 | PSD 50-250/185 | PV 8X12-4HP | 18.5KW |
|
350 |
7 | PEDJ350/7-30-32-4 | PST 50-250/220 | PSD 50-250/220 | PV 8X12-4HP | 22KW |
| 500 | 8 | PEDJ500/8-50-58-5.5 | PST 65-250/370 | PSD 65-250/370 | PV 12X12-5.5HP | 37KW |
| 750 | 8 | PEDJ750/8-75-75-7.5 | PST 80-250/550 | PSD 80-250/550 | PV 12X17-7.5HP | 55KW |
| ... | ... | ... | ... |
|
|
... |
Other sizes can provide on request.
Technical Data
Production Line
Packaging & Shipping
Our Exhibition
Certifications
