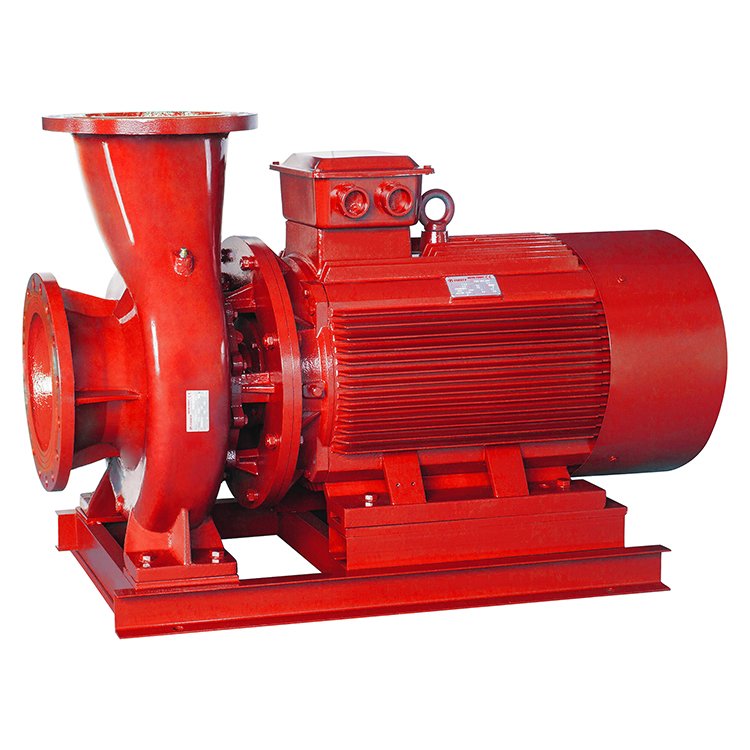

PURITY Horizontal Single-Stage Single-Suction Centrifugal Pump PGWF

TECHNICAL DESCRIPTION
· New centrifugal pump
· Original design by PURITY (patented)
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Impeller in stainless steel AISI 304 or cast iron
· Shaft in stainless steel AISI 304 or galvanized iron
· Quality bearing, wear resistance mechanical seal
3D PRODUCT CHAT NOW

Product Description



TECHNICAL DESCRIPTION

New centrifugal pump

Original design by PURITY (patented)

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Quality bearing, wear resistance mechanical seal


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS

Liquid temperature between -10 and +120

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1

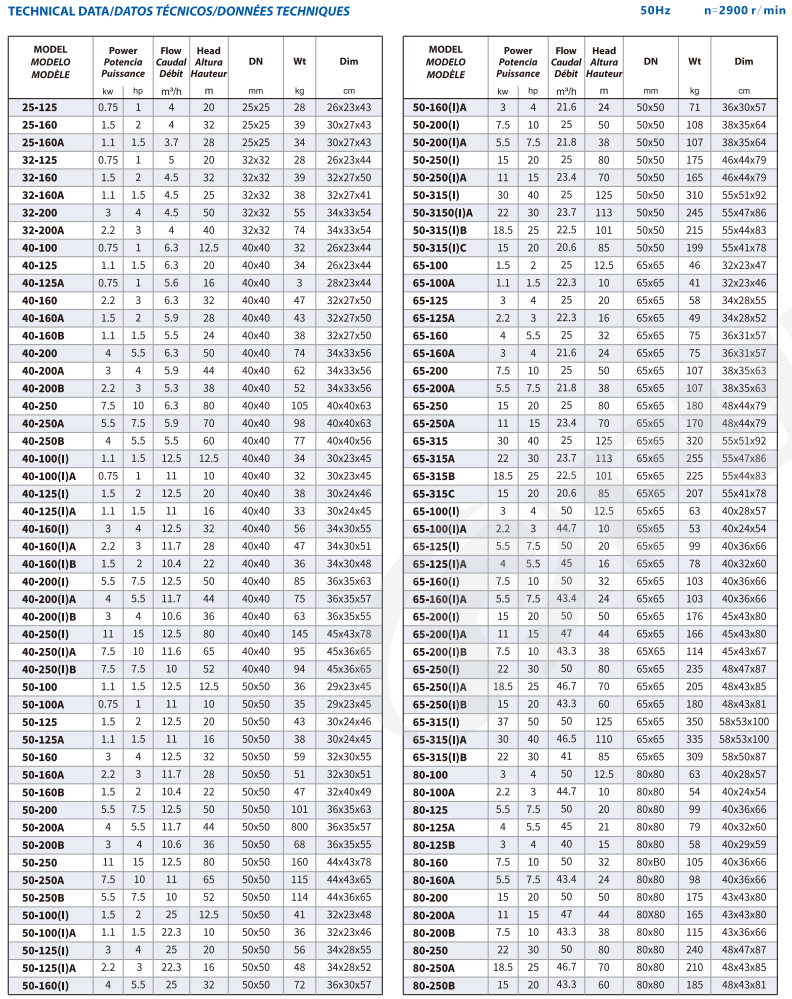

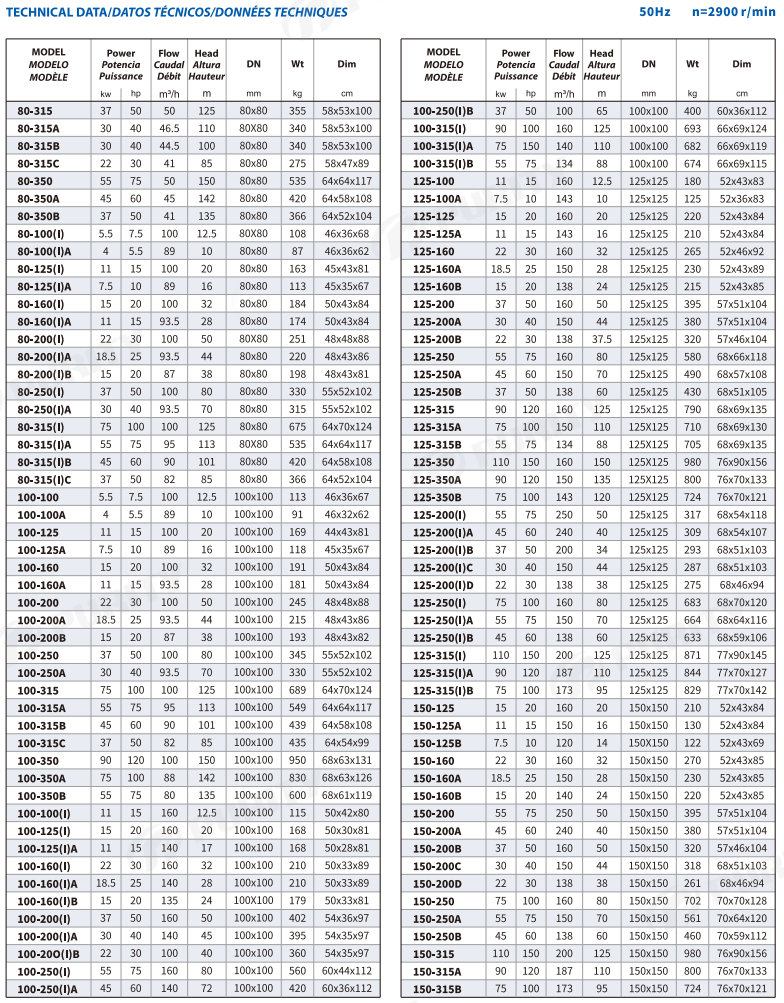

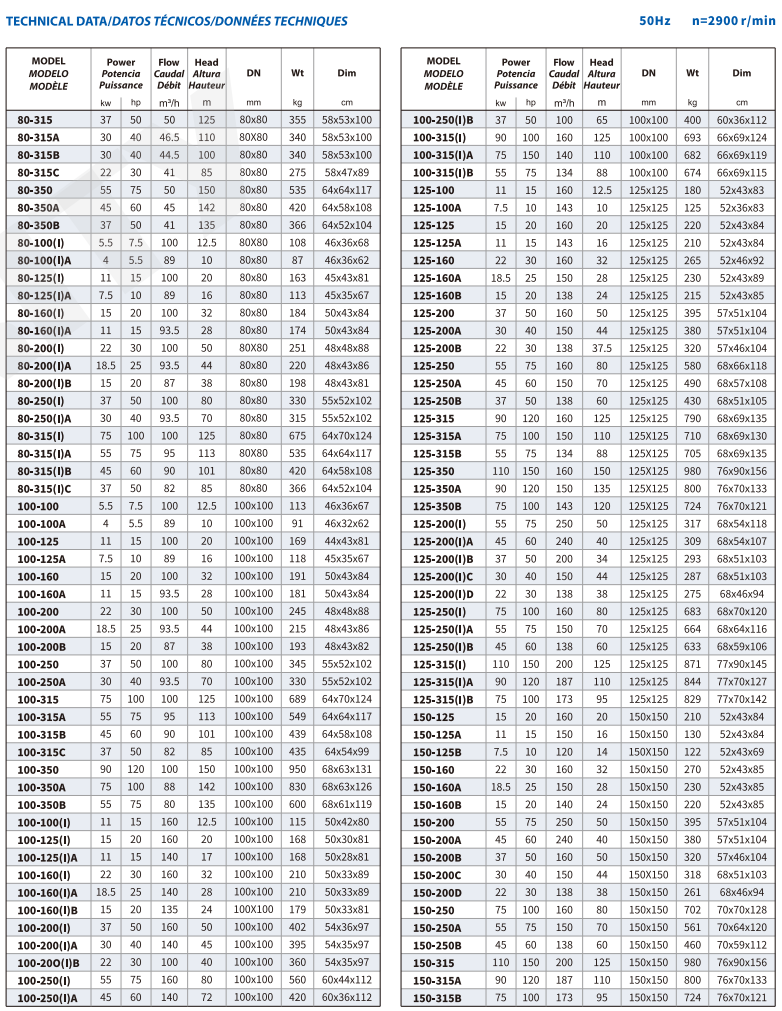

TECHNICAL DATA / DATOS TéCNICOS                                                     50Hz   n=2900  1/min



TECHNICAL DATA / DATOS TéCNICOS                                                     50Hz   n=2900  1/min



TECHNICAL DATA / DATOS TéCNICOS                                                     50Hz   n=1450  1/min



TECHNICAL DATA / DATOS TéCNICOS                                                     50Hz   n=1450  1/min



MATERIAL DESCRIPTION


No.

Description

Material

No.

Description

Material

No.

Description

Material

1

Pump Case

Cast iron

4

Connection

Cast iron

7

Water Deflector

Rubber

2

Impeller

SS304/Cast iron

5

Base

Cast iron

8

Shaft

SS304/45# Steel

3

Mechanical Seal

SiC/Carbon/SS304

6

Motor

IP55 Class F

9

Impeller Key

Iron





Spare Parts





Packaging & Shipping





Our Exhibition





Certifications




Product Description



TECHNICAL DESCRIPTION

New centrifugal pump

Original design by PURITY (patented)

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Quality bearing, wear resistance mechanical seal


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS

Liquid temperature between -10 and +120

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1

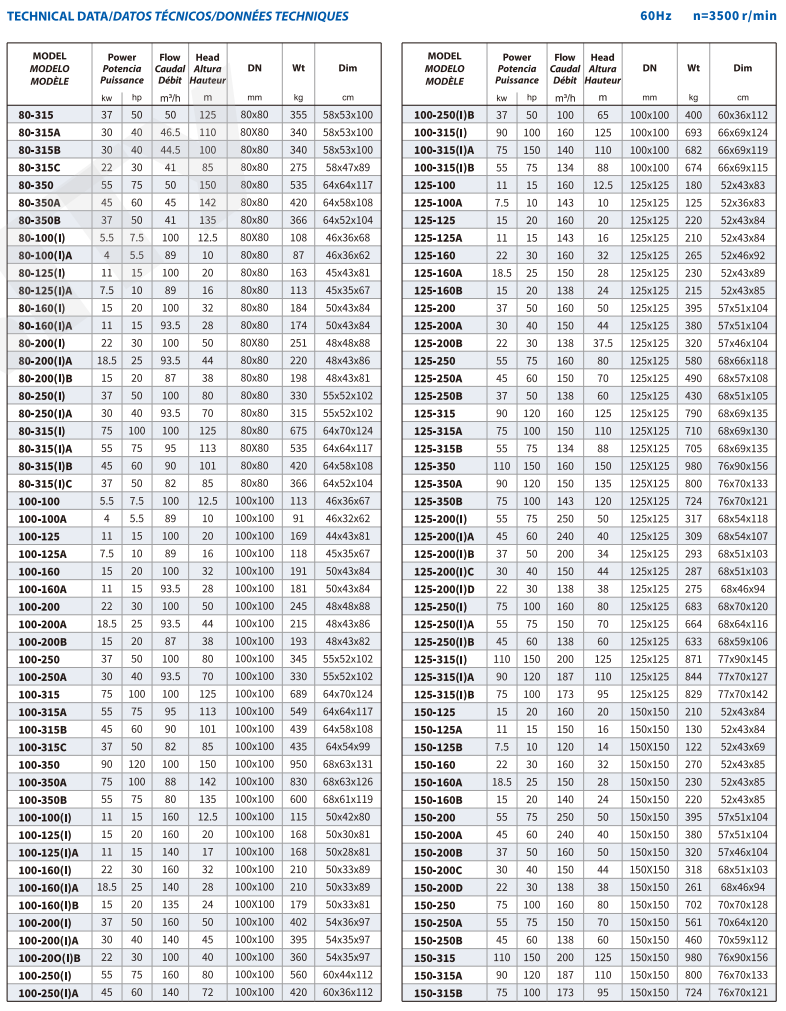

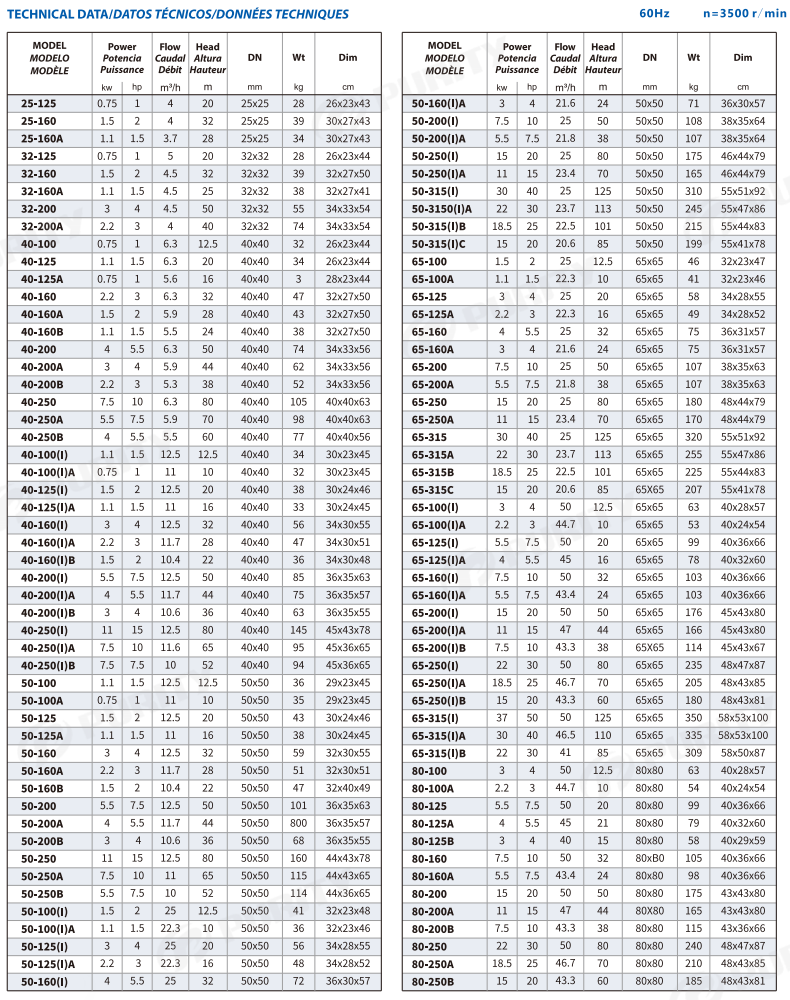

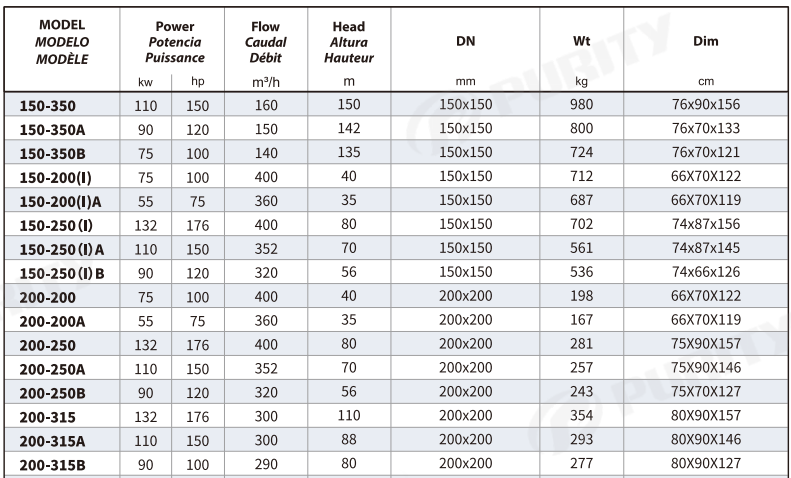

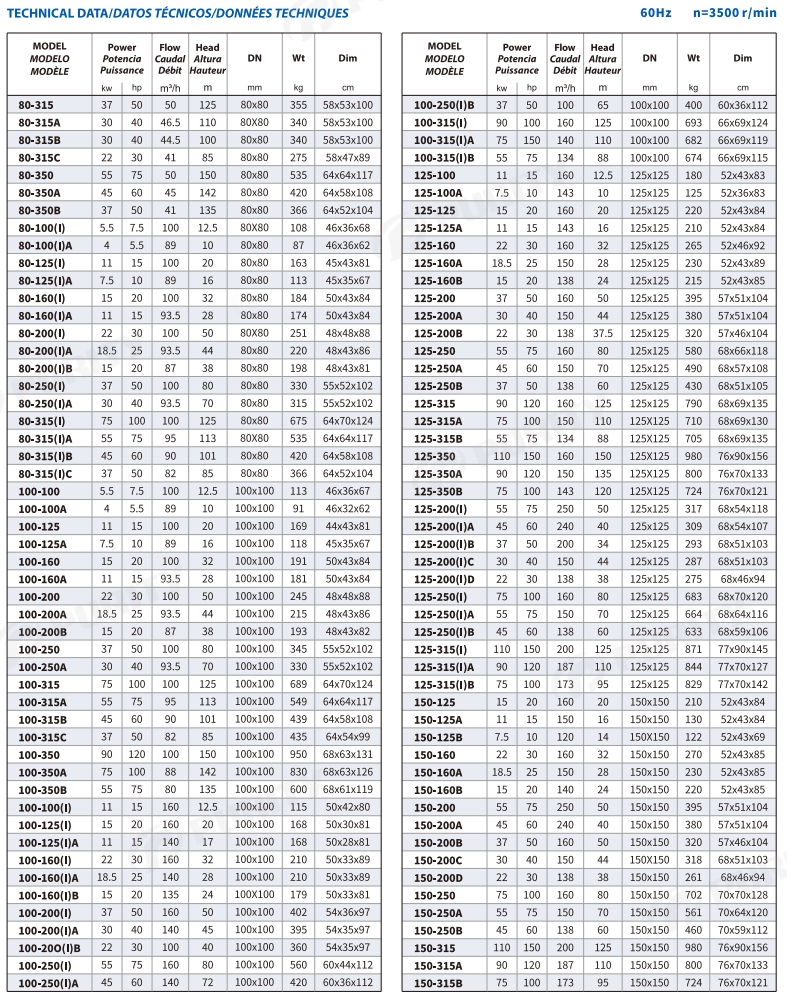

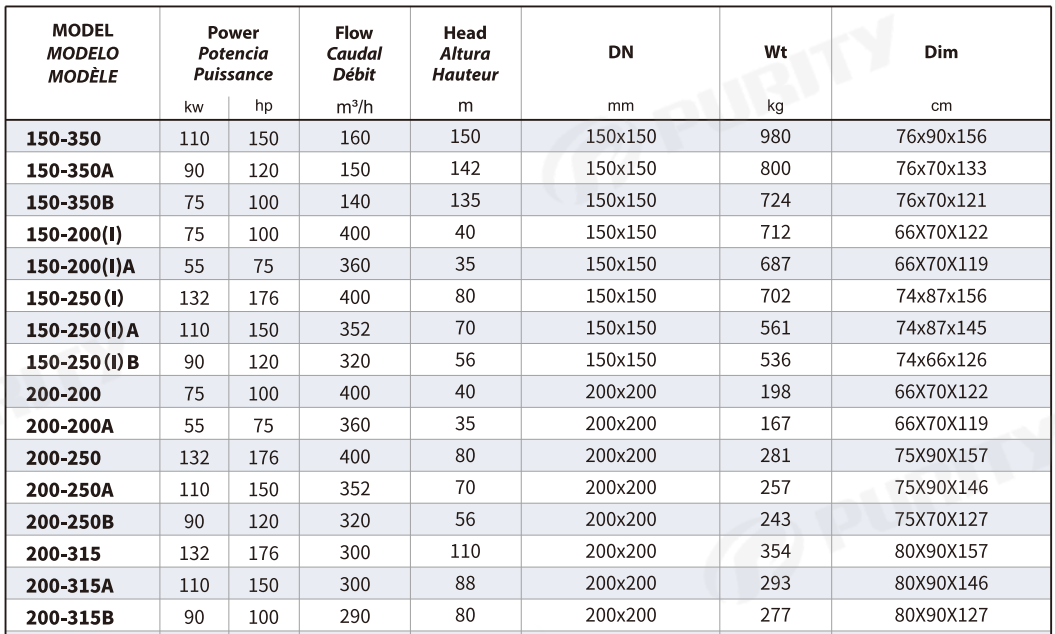

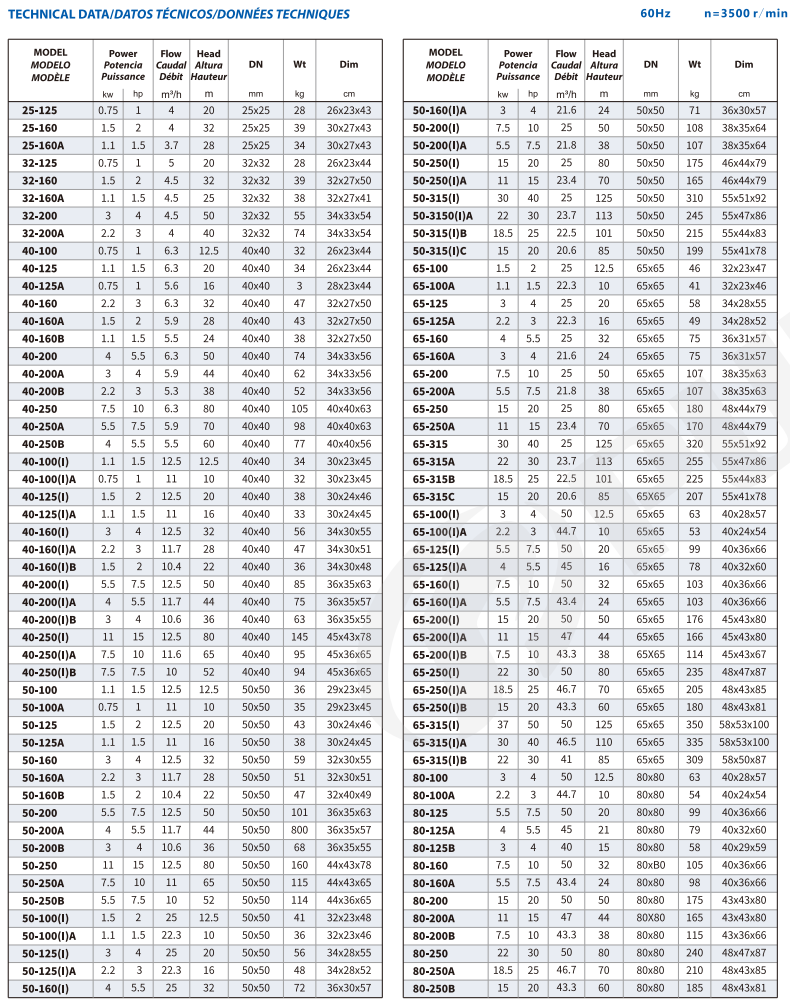

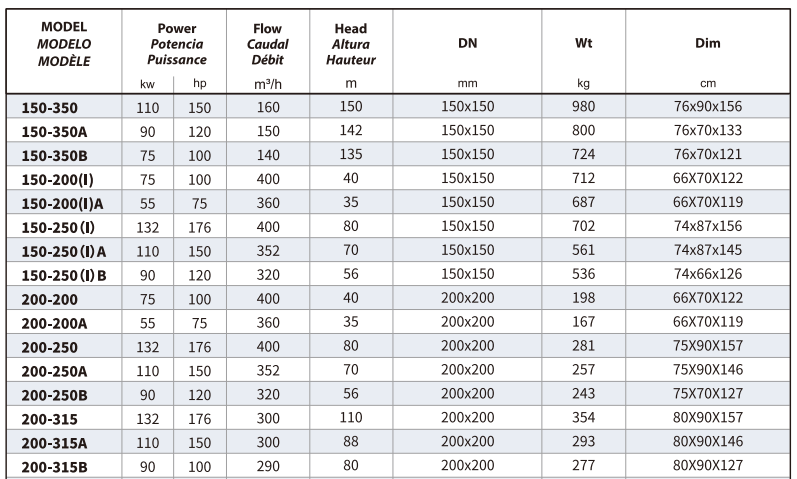

TECHNICAL DATA / DATOS TéCNICOS                                                     60Hz   n=3500  1/min



TECHNICAL DATA / DATOS TéCNICOS                                                     60Hz   n=3500  1/min



TECHNICAL DATA / DATOS TéCNICOS                                                     60Hz   n=1750  1/min



TECHNICAL DATA / DATOS TéCNICOS                                                     60Hz   n=1750  1/min

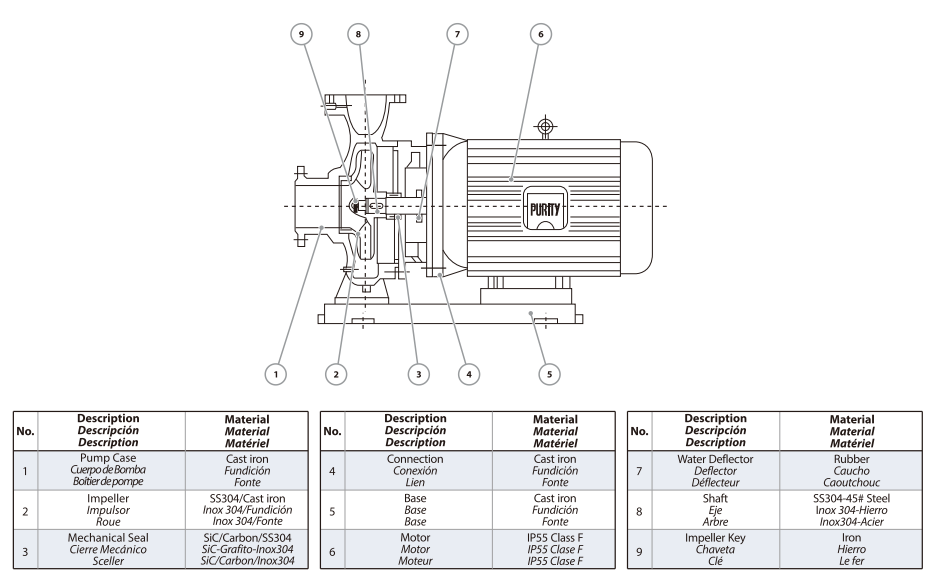

MATERIAL DESCRIPTION


No.

Description

Material

No.

Description

Material

No.

Description

Material

1

Pump Case

Cast iron

4

Connection

Cast iron

7

Water Deflector

Rubber

2

Impeller

SS304/Cast iron

5

Base

Cast iron

8

Shaft

SS304/45# Steel

3

Mechanical Seal

SiC/Carbon/SS304

6

Motor

IP55 Class F

9

Impeller Key

Iron





Spare Parts





Packaging & Shipping





Our Exhibition





Certifications
